NEO-Wifi
electrical connection of WiFi
to the line

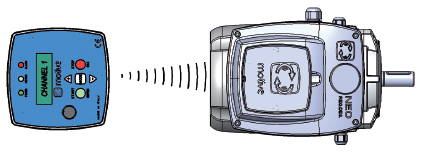

Keypad-inverter communication

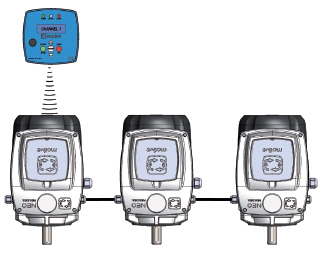

It is instead possible to obtain a synchronous behaviour of 2 or more NEO-Fi with one keypad, connected them in master-slave mode. Slaves can function also without keypad, once they have been configured in the RS485 connection

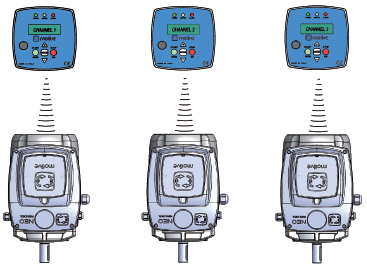

Separate control of multiple motors with multiple keypads with separate channels from 1 to 99
|
|
The keypad during the functioning of the motor shows, alternating them, the following two sets of data
Watts absorbed by the motor
Power factor Motor [cos.Fi]
Inverter temperature
Rev/min of the motor
Amps drawn by the motor
Volt motor power
Hertz motor power
Keypad-inverter communication channel
|
